Multi LNG White STS
Applications

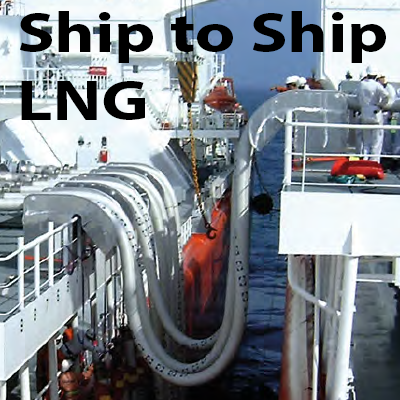

Multi-LNG White STS is especially designed for Offshore use in rough conditions, such as ship to ship operations where fully refrigerated conveyants like LNG will be offloaded. Multi-LNG White STS hoses can be used in different operations such as side by side and tandem offloading. Multi-LNG White STS hoses are also suitable as Vapor Return line in combination with other transfer systems, like loading arms and flexible pipelines.
Reliable
Reliable An extended test program has proven that Multi-LNG White STS hoses are reliable and safe to use in rough offshore conditions. Multi-LNG White STS hoses have a high resistance against any damage.
Certifications
Multi-LNG White STS hoses have been tested and approved according EN 13766, IMO IGC Code and EN 1474-II by several classification societies, such as DNV, ABS, Bureau Veritas and Class NK.
Lengths and sizes
Multi-LNG White STS hoses are available in sizes from 4” up to 10” in lengths up to 30,00 meter. Multi-LNG White STS in size 12” and 16” only on customer request.
End connections
Multi-LNG White STS hoses are equipped with end fittings to customer requests. All types of ERC, QCDC and other special requirements can be connected directly to the hose fitting. The fittings have been swaged to Gutteling BV’s special mounting procedure and have been fully tested on their resistance against low temperature and high external loads.
Test / qualification program

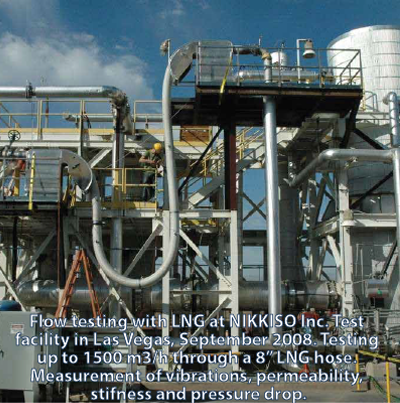

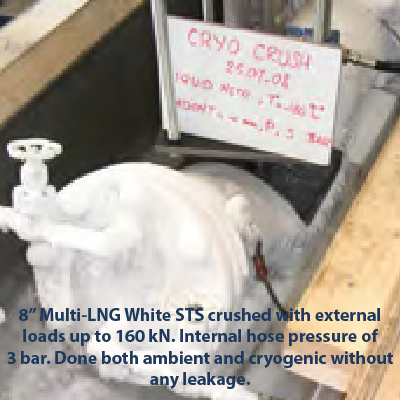

The qualification program essentially covers, strength and stiffness of the Multi- LNG White STS hoses, fatigue due to bending and thermal cycles and flow and damage tolerance. Tests are performed at both ambient and cryogenic conditions.
